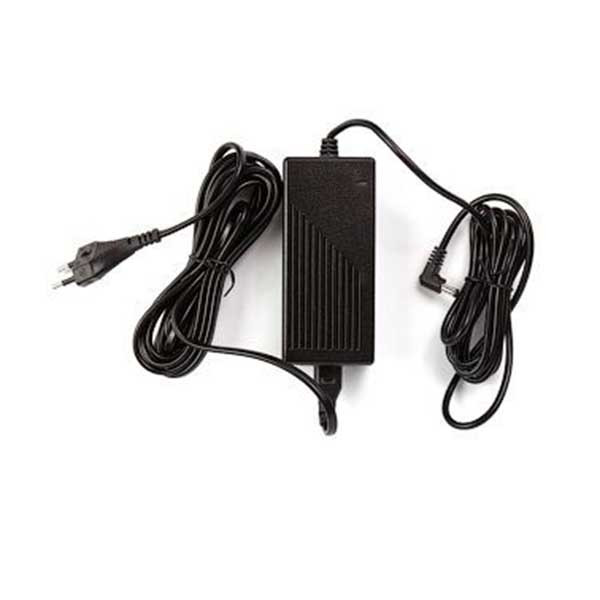

Блок питание Yongnuo Led YN600, YN308, YN608, YN300, YN360

Подходит f YN-600L/600LII/600Air/600RGB,
YN308,YN608/608RGB,YN300III/300Air,
YN360 YN1410/YN160III/168/216
AC Input Detail:
1) AC Input Voltage Range: 100-240V
2) AC Input Current: 1500mA
3) Input Frequency Range: 47-63Hz
4) No Load Power Consumption: <0.5W
5) Inrush Current: 30A
6) Hold Up Time: 5ms Min.at100Vac input and output Max .Load.
7) Rise Time: 30 ms Max
8) Line Regulation: ±2%
9) Leakage Current: < 0.25mA

DC Output Detail:
1) DC Voltage Range: 3-24V
2) DC Current Range: 100-4000mA
3) Total Regulation:
4) Ripple & Noise: 100 m Vp-p
5) Working Efficiency: 80%
6) Protections: Short Circuit Protection, Over Voltage Protection, Over Current Protection, Open Circuit Protection

Environmental Requirement:
1) Operating Temperature: 0℃ -- +40℃
2) Storage Temperature: -10℃ -- +55℃
3) Operating Humidity: 5%(0℃)~90%(40℃) 72h Full Load
4) Storage Humidity: 3%-98%

Reliability:

1) MTBF( Mean Time Between Failures): 50000 Hours
( Based on MIL-STD-217F)

Hi-pot Test:
Primary-Secondary: 3750Vac/ 5mA/ 60s
Primary-Case : 500Vac/ 5mA/ 60s
Burn-In Test:
Full Load with 4 hours at 40℃

Regulatory Agency Certification:
1) RFI/EMI: EMC Standard: EN55022/ EN55024/ EN55013/ EN55020
2) Safety Standard: EN60065, EN60950

Mechanical Features:
1) AC Plug: European Standard
2) DC Jack(Plug): 5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm,etc
3) DC Cable Length: 1.5m
4) Case Dimension: L119*W61*H37mm
5) Weight: 0.30KG
6) Color: Black

Note:
1： AC Rated Voltage Input: 100-240V
2： AC Max Voltage Input: 90-264V
3： AC Input Current: 1500mA
4： DC Voltage output Range: 3-24V
5： DC Current output Range: 100-4000mA
6： Approval & Safety: UL,CE,PSE,EK,SAA,C-tick, S-mark, BS,GS,CB,FCC,CEC
